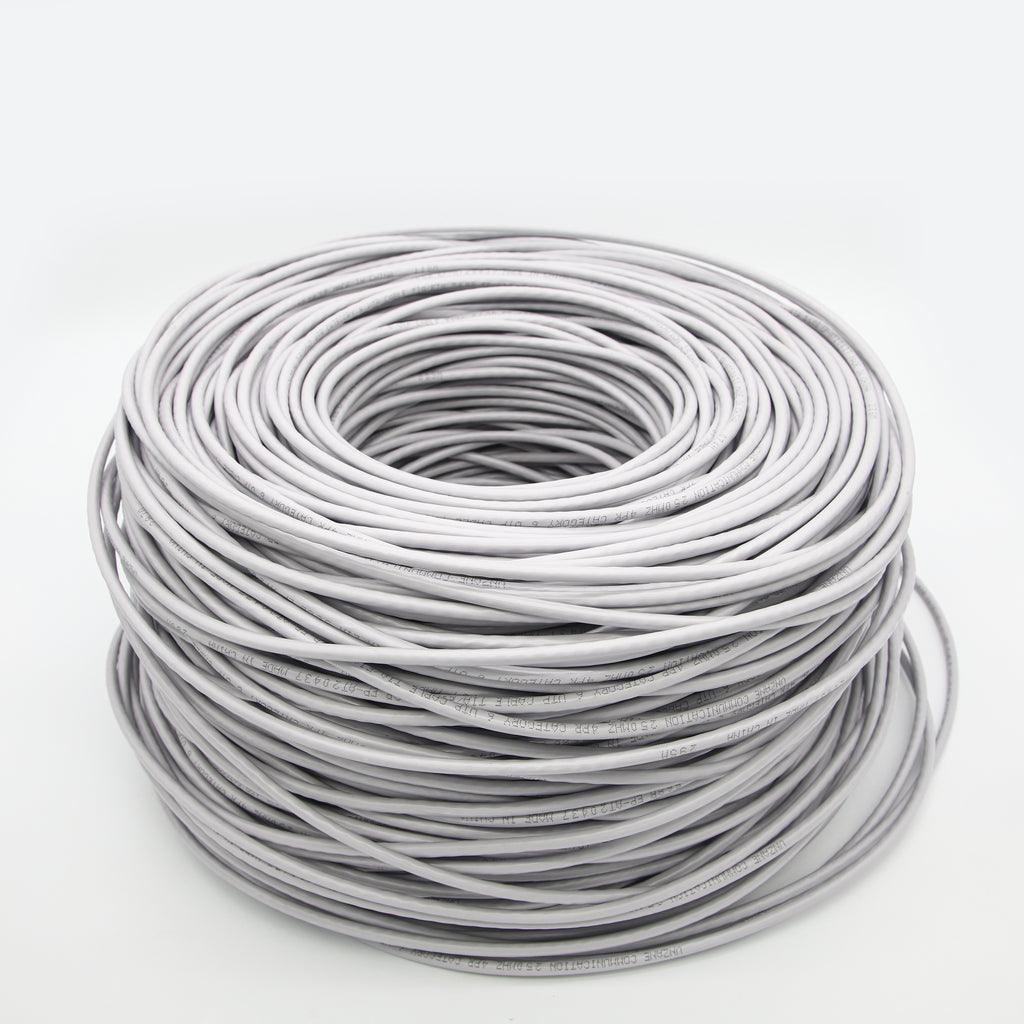

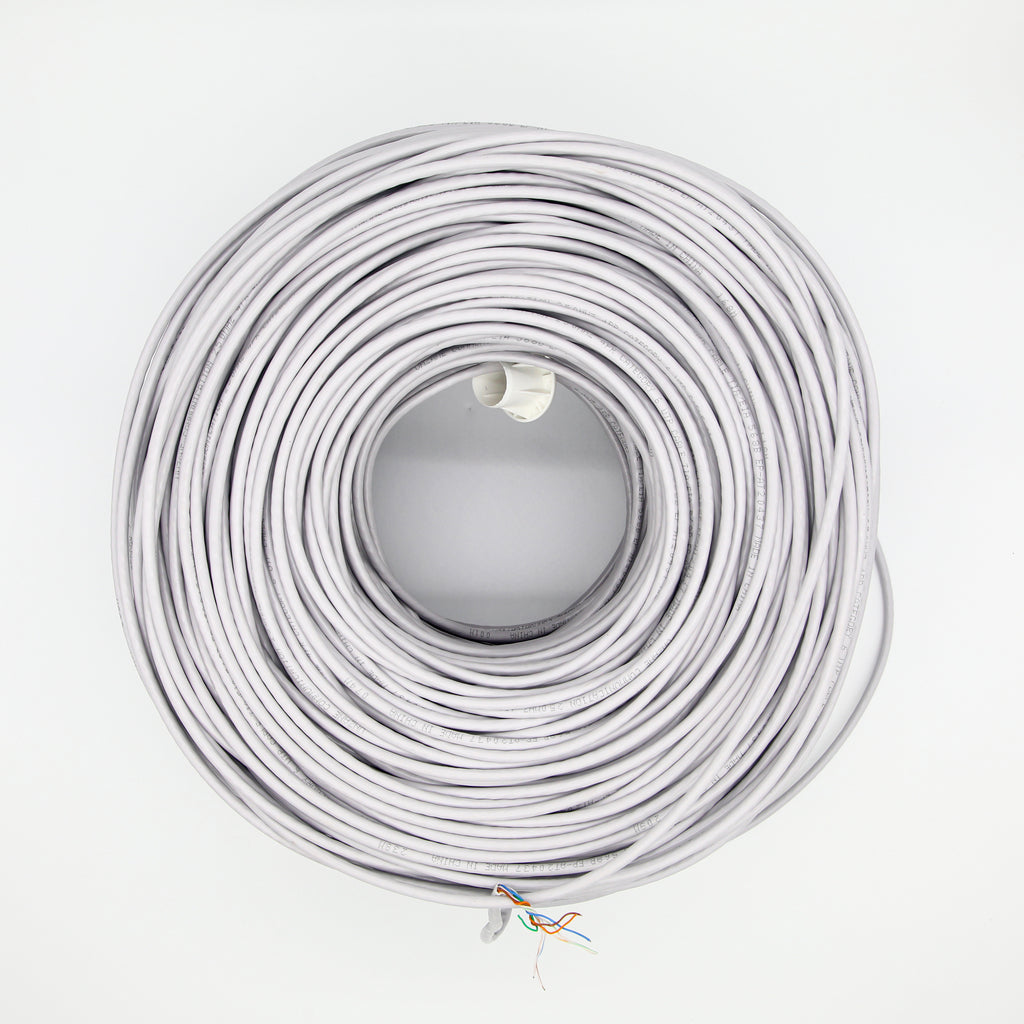

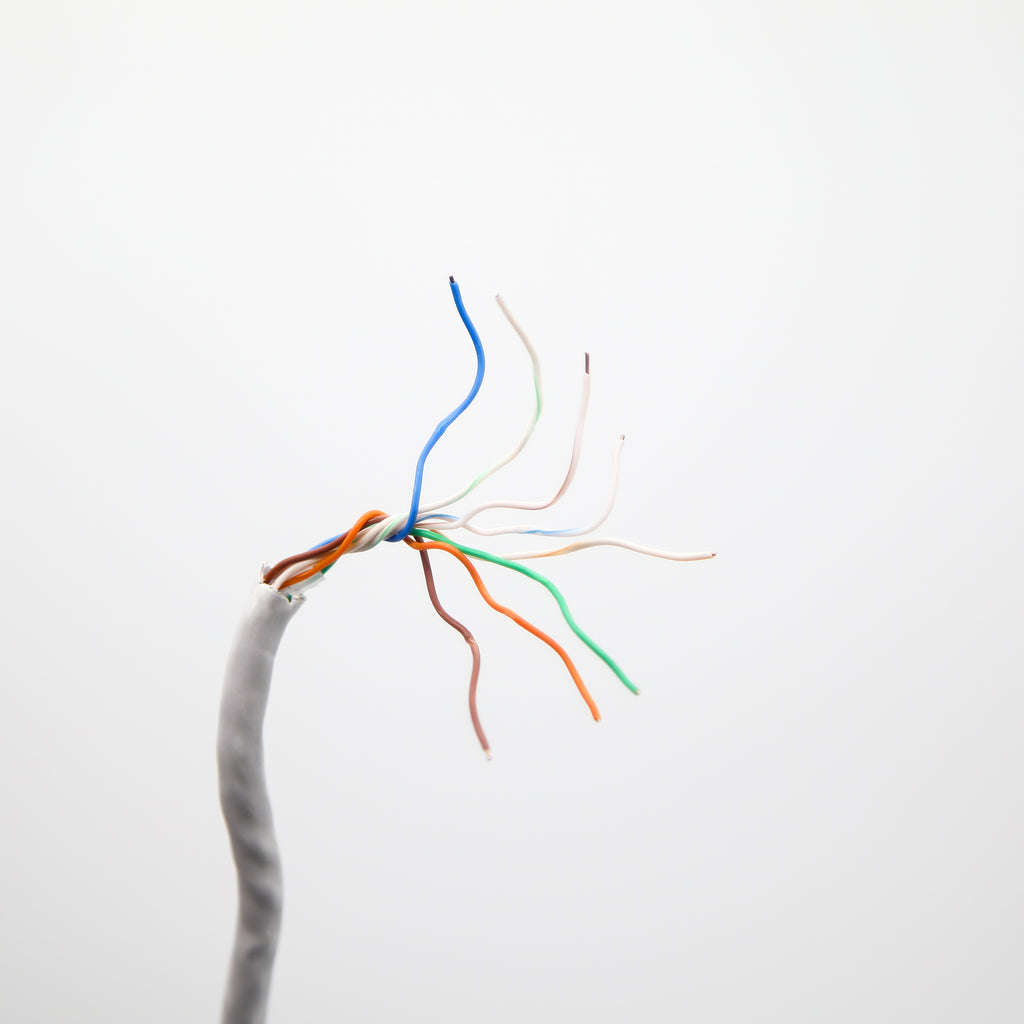

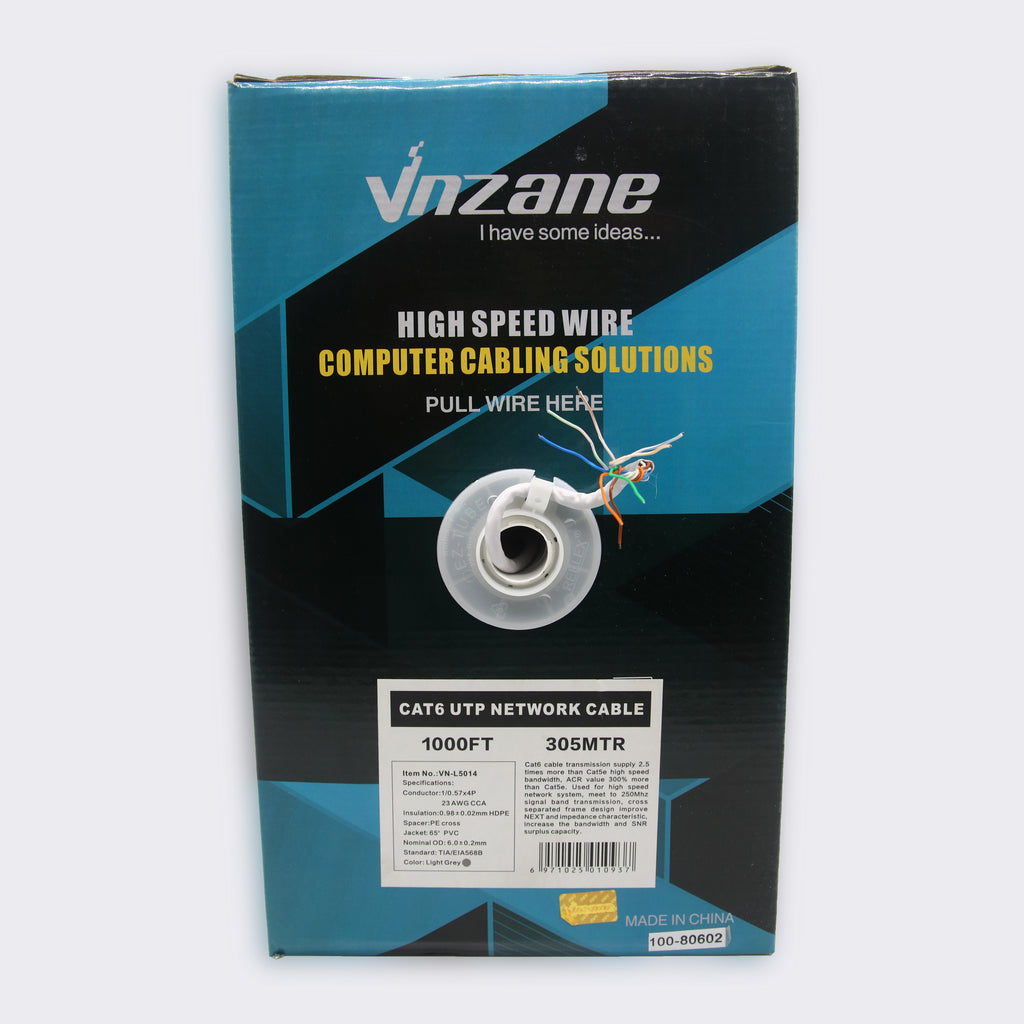

SPECIFICATION: UTP CAT 6 23AWG CCACUSTOMER PART NO.: ITEM SPECIFICATION CONDUCTOR DIAMETER0.56±0.005mm MATERIAL copper clad aluminum Conductor Structure Solid Test Material Insulation Before Aging Tensile Strength≥16Mpa Elongation≥200% Aging Condition100℃24hours×7days After Aging Tensile Strength  Elongation Variation COND.SIZE4X2X0.5mm INSULATIONMIN.AVG.THICK0.225mm MATERIALHDPE I.D0.95±0.02mm 1.white/blue-blue、 2.white/orange-orange、3.white/green-green、4.White/Brown -Brown TWISTED CORED.1.90±0.05mm CROSSPE4.5*4.5*0.25mm Rip cord Nylon yarn630D JACKETMIN.AVG.THICK0.6mm MATERIAL NEW PVC COLOR Customer requirements OD.6.0±0.2mm MARKING: VNZANE CATEGORY 6 UTP LAN CABLE 4PR 23AWG TIA/EIA 568C1M.-305M. Marking Color: Black Length of Cable:305m QTY:1Roll/Pull Box,2BOXES/CTN Package: Pull Box +CARTON Rated Temperate:75° Electrical Characteristic Max. DC Resistance at 20℃(Ω/km)≤230 Min. Insulation DC Resistance (MΩ.km)≥5000 Conductor Resistance Max. Unbalance 20℃ %≤5 Applications: Networking and Camera security system Application range:802.3/802.3u IEEE 10/100BASE-TX、LAN ATM51、 ATM155、TR-16、 Camera Connection
